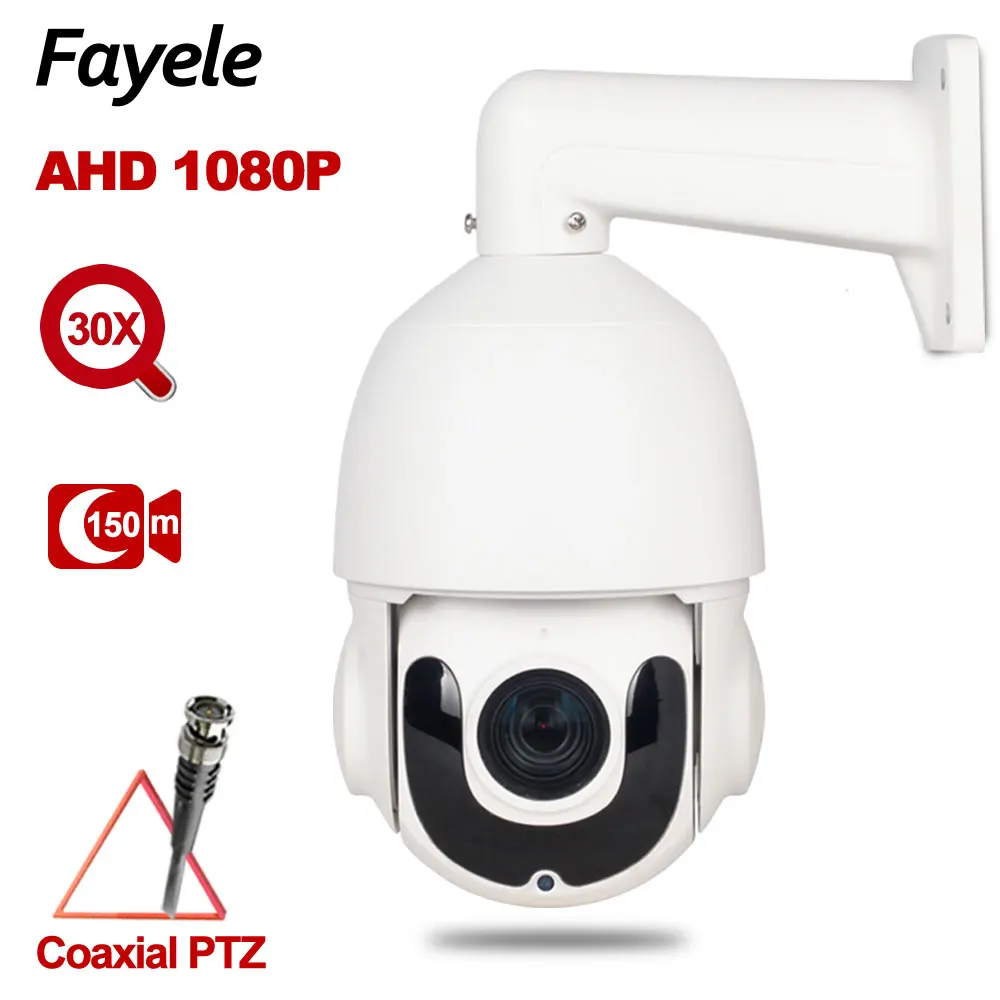

4" High Speed Dome PTZ Camera AHD 1080P

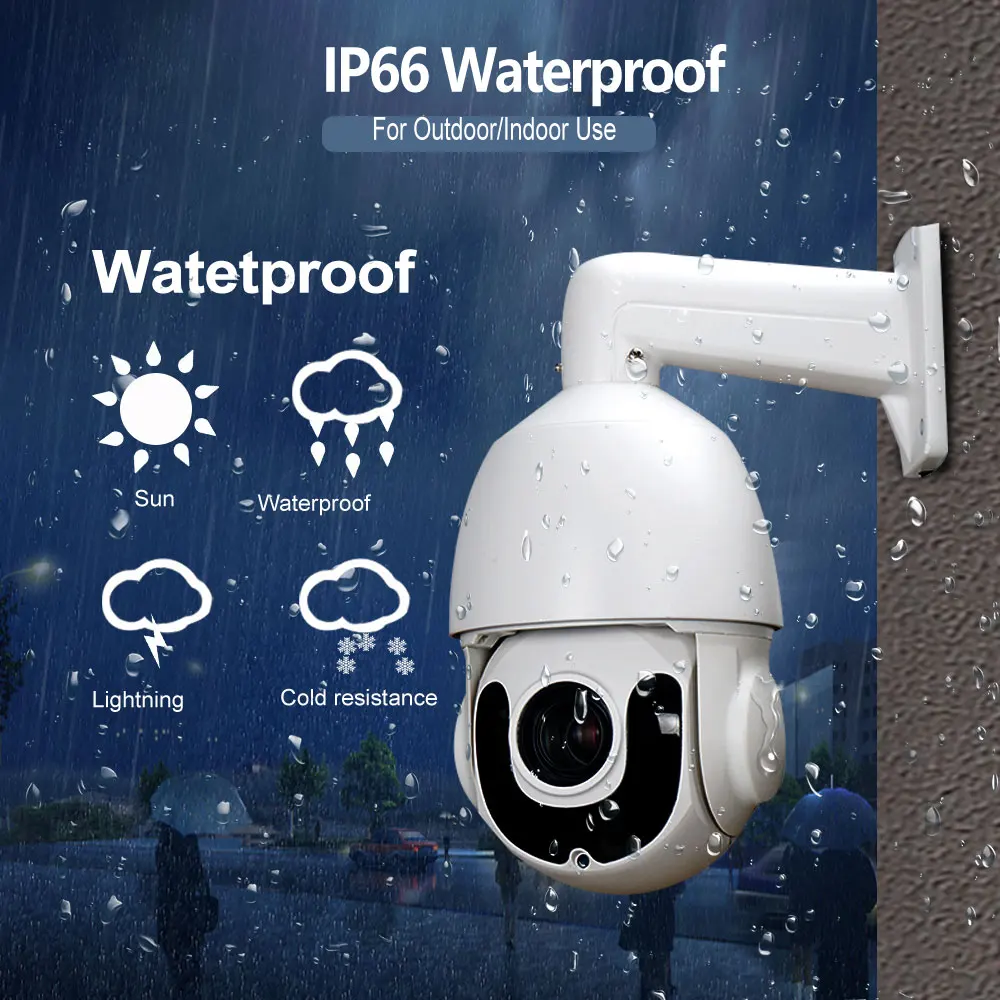

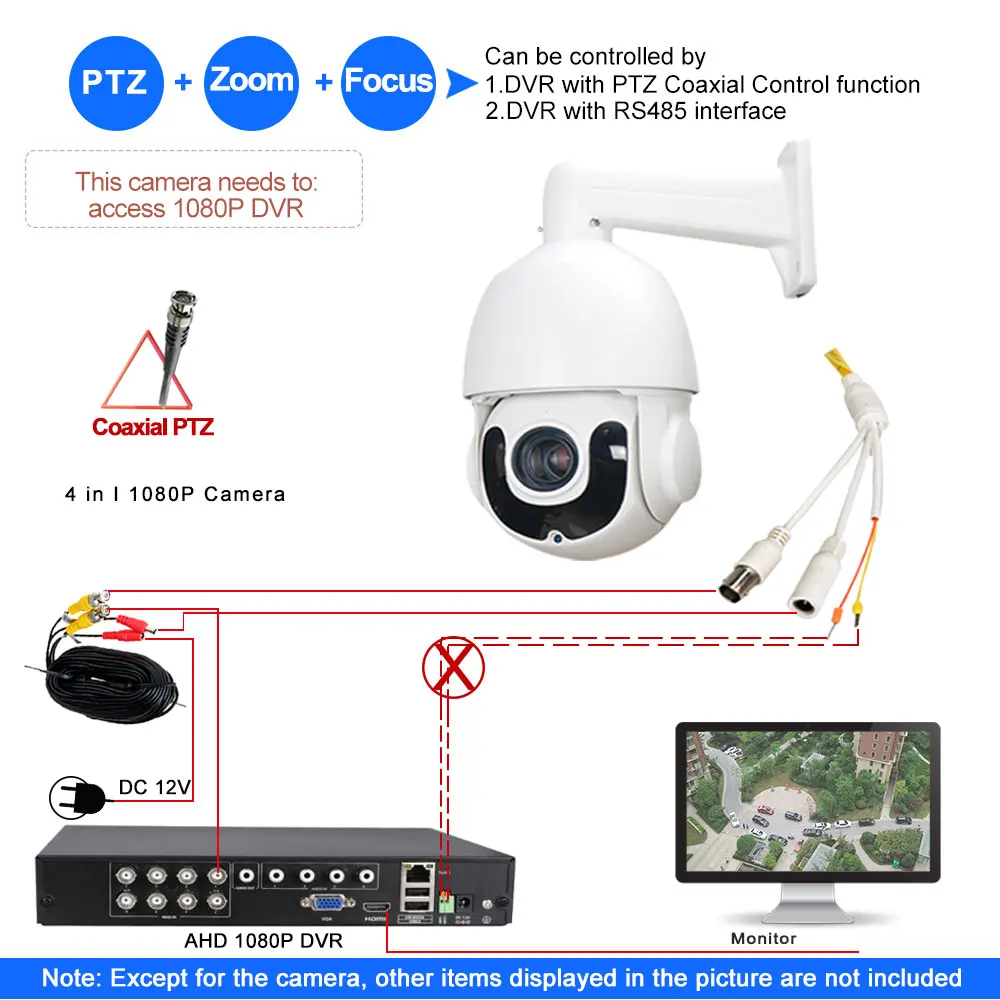

  Product Description:   Support Coaxial PTZ Control!! RS485 is no more required. Support PTZ control by both Coax and RS485. You could use either of them. Super good night vision. 6pcs High quality array LEDs, auto-switch to long/middle/close distance focus(Light up different numbers of LEDs), 80M IR distance. High performance constant-current design, leds light time up to 50,000 hours. Infrared light and magnification range matching algorithm based on infrared light adjustment, the brightness ratio, distance and angle for the image to achieve the desired state of image. 3 modes(Auto/On/Off) status for LEDs setting for different requirements in different environment. All-metal die-cast aluminum design for any weather, weatherproof, durable to use in different kind or weather/climate, IP66 grade waterproof. High precision motor, precise control, smooth motion, stable rotation. 4" MINI SIZE AHD 1080P High Speed Dome PTZ Camera 20X ZOOM.   Parameters:       Model:                                                           HDR-406-120A Camera Image Sensor:                                             1/3" CMOS Resolution:                                                   2.0MP 1280(H)x 1080(V) Video Format:                                              PAL/NTSC Minimum Illumination:                               Color: 0.1Lux   B/W: 0.01Lux Video Out:                                                    AHDH(1Vp-p 75ohm) S/N Ratio:                                                     ≥50DB White Balance:                                           Auto Day&Night mode:                                       Built-in IR-CUT  Auto/Day/Night optional Lens Focus Length:                                           4.7 to 84.6mm(F1.6 to F2.7) ZOOM:                                                          20X ZOOM Function IR control:                                                    Variable with focus length  IR Distance:                                                80M Rotate Range Horizontal:                        0°~360° Vertical:-15°~90° Rotate Speed Horizontal:                        0.1°~240°/s; Vertical 0.1°~180°/s   Preset:                                                         255 Patrol Track:                                               4 path, each path can add 10 presets Automatic scan:                                         1 path  360°track:                                                  1 path Watch:                                                          Preset / Patrol Track / zone track / horizontal track Video:                                                           In/Out Video Out:                                                   1.0Vpp/75Ω,NTSC/PAL,BNC Port Pan/Tilt Control 2 method control:          a)Control over coax:Power & Video cable plug-and-play, no need to set up address code or DVR PTZ control. Easy and                                                                              quick b)PTZ Control via RS485  Other Power:                                                           DC12V Consumption:                                              12W Working Environment:                               Temprture-40~60 degrees; Humidity<90% Protection grade:                                       IP66 waterproof, 4000V Lightning protection, against-surge Material:                                                       Metal casting aluminum   Package Include:

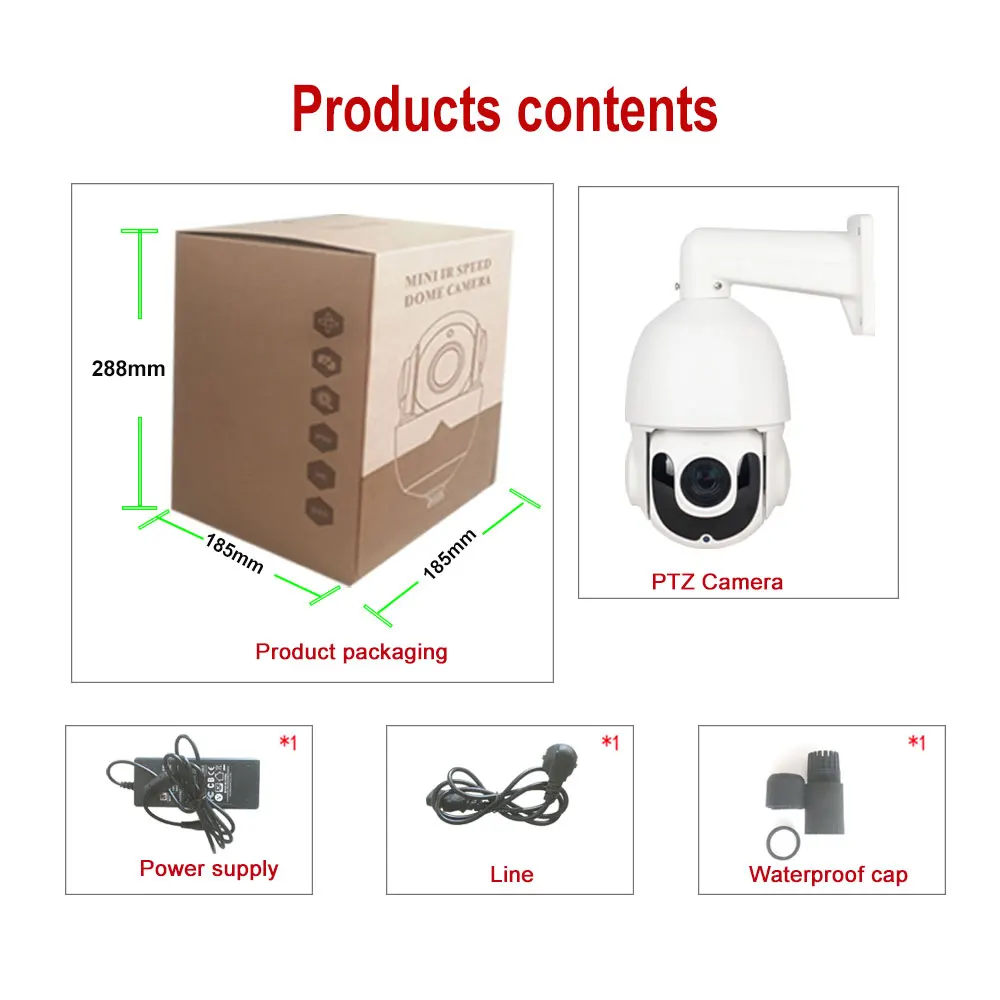

• 1 x AHD 1080P High Speed Dome PTZ Camera
• 1 x Power Supply
