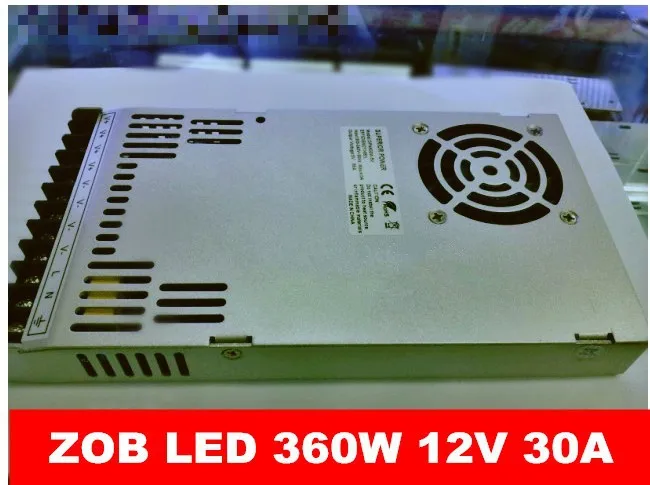

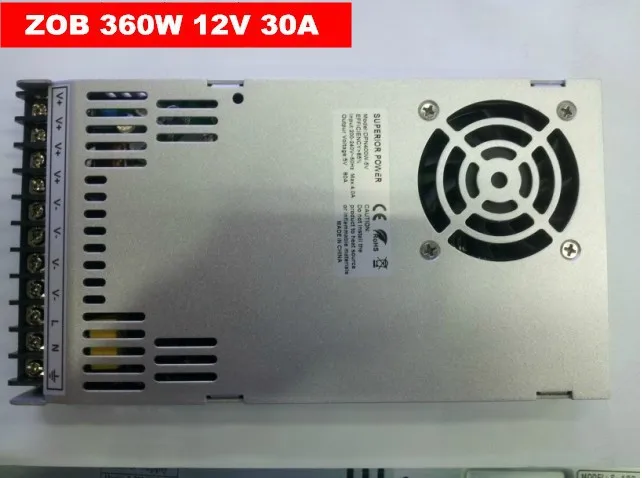

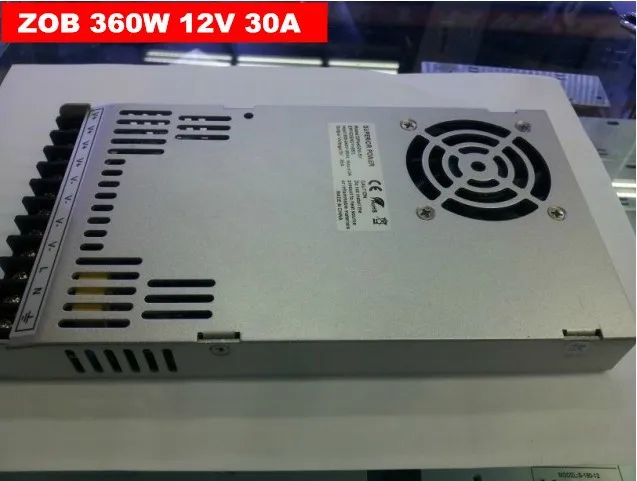

ZOB LED the latest products 360W 12V 30A AC/DC200V-240V switching power supply 360w led display / module dedicated wholesale |
История изменения цены
*Текущая стоимость 6 608,12 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Jul-25-2026 | 7864.52 руб. | 8257.43 руб. | 8060.5 руб. |
| Jun-25-2026 | 7797.29 руб. | 8187.27 руб. | 7992 руб. |
| May-25-2026 | 6542.98 руб. | 6869.85 руб. | 6705.5 руб. |
| Apr-25-2026 | 7665.74 руб. | 8048.20 руб. | 7856.5 руб. |
| Mar-25-2026 | 6674.36 руб. | 7008.93 руб. | 6841 руб. |
| Feb-25-2026 | 7533.57 руб. | 7910.21 руб. | 7721.5 руб. |
| Jan-25-2026 | 7467.38 руб. | 7840.66 руб. | 7653.5 руб. |
| Dec-25-2025 | 7401.28 руб. | 7771.89 руб. | 7586 руб. |
| Nov-25-2025 | 7335.66 руб. | 7702.7 руб. | 7518.5 руб. |
Описание товара
Thin, narrow width, can effectively reduce the thickness and weight of the display 100% full load burn- Size: 217x117x30mm Technical parameters: high reliability, small installation space built-in EMI filter Low output ripple and noise Protection: Overload / Over temperature protection / short circuit protection / High reliability 2 year warranty AC input voltage range ...... 176-264VAC Input frequency ...... 47-63Hz Input surge ...... cold start, 30A/230VAC Output voltage adjustment range ...... ± 10% Voltage regulation (full load) ...... < 0.5% Output overload ...... 110% -150% hiccup mode, auto recovery Rise, hold up time ...... 50mS, 20mS at full load (typical) Dielectric strength ...... I / PO / P, I / P-FG: 1.5KVAC, O / P-FG: 0.5KVAC, 1 min Operating Temperature ...... 0-40 @ 100%, -10 @ 80%, 50 @ 60% load Storage ...... -20 ~ +85 , 20% ~ 95% RH (no condensation) Safety standards ...... meet the GB4943, UL60950-1, EN60950-1 EMC standards ...... meets GB9254, EN55022 class A Active cooling mode ...... cooled scattered
Switching power supply with small size, light weight , high efficiency , and therefore is widely used as a DC power supply stepper motor , PLC control systems , surveillance cameras , LED lighting , LED luminous characters box advertising . In computers , communications equipment , industrial control , home appliances, transportation , building , etc.
Product Features
imported components, high reliability
DC ripple, high efficiency
Built-in EMI filter , anti-jamming performance
Soft start circuitry , AC inrush current limiting
Low temperature, long life
good insulation properties, high dielectric strength
100% full load burn-in temperature aging test
Wide input voltage range, in line with the global standard
Small size, light weight , attractive appearance
Short circuit, overload, overvoltage protection
Description of terminals and wiring methods
L, N grounded AC input FG mark
V + DC output positive terminal V- DC output negative terminal
ADJ adjustable DC output voltage trimming potentiometer
Precautions
1 , in determining the power output power supply should not be considered to work long hours in a fully loaded condition, work long hours under continuous conditions , otherwise it will be possible to create an artificial early failure. Power required to ensure long-term use, please leave room use .
2 , in order to ensure safety, the metal shell to be grounded, but must not be mistakenly connected properly connected to the ground screw terminals.
3 , according to the input AC voltage 220V, the switching power supply to avoid damage .
4, the product is subject to the conditions of use of the parameters in the table , in order to avoid failure.
5, the product should be closely all wiring firm, not loose, so as to avoid heat damage to the switching power supply .
6 , according to the input and output voltage , current, and various protection functions to find the appropriate size switching power supply.
7 , the product warranty period of two years, but as man-made damage caused by improper use or dismantle damage , not in this warranty .
